Page 84 - MM TECHNO PLAST CATALOGUE
P. 84
SWITCH
Marine RADAR ENTEL HANDHELD RADIOS
® ®
DX544-IS
Ÿ All Marine VHF Channels (INT, USA, CAN)
Ÿ Displays marine channel number & channel name
Ÿ IP68 Submersible (2m, 4 hours)
Ÿ Compliant to MILSTD construction 810C/D/E/F/G
Ÿ Salt Water anti-corrosion chassis coating
Ÿ 3 watts loudest & best clarity audio - in class
Ÿ Programmable buttons
Ÿ Gold plated accessory connector
Ÿ Locking accessory connector
Ÿ Accessory audio tailoring optimises audio for each accessory
Ÿ Easy to read, high contract white on black OLED display
Dx544-IS

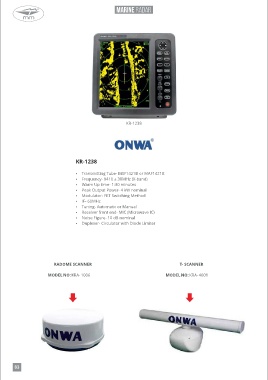

KR-1238
HT 644
KR-1238
Ÿ Frequency Range: 156 - 163.275MHz
Ÿ Transmitting Tube- MSF1421B or MAF1421B Ÿ Channels: All INT, USA & CAN Marine Channels
Ÿ Frequency- 9410 ± 30MHz (X-band) Ÿ Channel Spacing: 25 kHz
Ÿ Warm Up time- 1:30 minutes Ÿ Communication Method: Simplex / semi duplex
Ÿ Peak Output Power- 4 kW nominal Ÿ Battery Type: 2200 mAh Lithium-ion battery pack
Ÿ Modulator- FET Switching Method Ÿ Size (mm): 59.5(W) x 130(H) x 37(D)
Ÿ IF- 60MHz Ÿ Weight: 277g with battery and aerial
Ÿ Tuning- Automatic or Manual
Ÿ Receiver front end- MIC (Microwave IC)
Ÿ Noise Figure- 10 dB nominal
Ÿ Duplexer- Circulator with Diode Limiter
HT 644
RADOME SCANNER T- SCANNER
DT885FF
MODEL NO: KRA- 1006 MODEL NO: KRA- 4001
Ÿ Analogue & DMR Modes
Ÿ 99 Channels, 1 Zone
Ÿ IP68 Submersible (2m, 4 hours)
Ÿ Compliant to MILSTD construction 810C/D/E/F/G
Ÿ Easy to read, high contract white on black OLED display
Ÿ Display channel number & frequency
Ÿ Exceptionally loud & best clarity audio - in class
Ÿ Salt Water anti-corrosion chassis coating
Ÿ Programmable buttons
Ÿ Accessory audio tailoring optimises audio for each accessory
DT885FF
83 84
