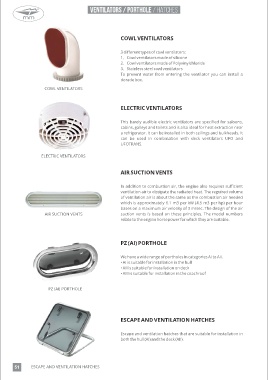

Page 52 - MM TECHNO PLAST CATALOGUE

ventilators / porthole / hatches anodes / battery / battery charger
® ®

ANODES
COWL VENTILATORS

Protection by means of anodes is a ”must” for all metal parts under
3 different types of cowl ventilators: water. Therefore anodes are required for wooden, fibre glass and
1. Cowl ventilators made of silicone aluminium hull’s. The material of zinc anodes is of the highest
2. Cowl ventilators made of Polyvinylchloride possible standard, the U.S. mil.-A-18001 K. specifications. Anodes
3. Stainless steel cowl ventilators which do not meet these specifications have little or no effect.
To prevent water from entering the ventilator you can install a ANODES
dorade box. Aluminium anodes consist of an aluminium-indium-zinc alloy Mil -

COWL VENTILATORS A - 24779 (SH). All anodes are streamlined and mounted either with
studs which can be welded to a steel hull, or with through-hull bolts
for fibreglass and wooden boats. We supply these studs and bolts
separately.
ELECTRIC VENTILATORS

This barely audible electric ventilators are specified for saloons,
cabins, galleys and toilets and is also ideal for heat extraction near
a refrigerator. It can be installed in both ceilings and bulkheads. It
can be used in combination with deck ventilators UFO and
UFOTRANS.

ELECTRIC VENTILATORS
ABSORBED GLASS MAT (AGM) SERIES

AIR SUCTION VENTS Ÿ Sealed VRLA (Valve Regulated Lead Acid) and maintenance free
Ÿ (does not contain any free electrolyte)
In addition to combustion air, the engine also requires sufficient Ÿ Electrolyte is absorbed by glass fibre mat separators between
ventilation air to dissipate the radiated heat. The reguired volume battery plates
of ventilation air is about the same as the combustion air needed Ÿ Leakage-free even when the battery is dropped and the casing
which is approximately 6.1 m3 per kW (4.5 m3 per hp) per hour is damaged
bases on a maximum air velocity of 3 m/sec. The design of the air Ÿ Battery can even be shipped by airfreight
AIR SUCTION VENTS suction vents is based on these principles. The model numbers Ÿ Manufactured in the EU
relate to the engine horsepower for which they are suitable.
AGM (ABSORBED GLASS MAT) SERIES

PZ (AI) PORTHOLE

We have a wide range of portholes in categories AI to AII.
• AI is suitable for installation in the hull
• AII is suitable for installation on deck
• AIII is suitable for installation in the coachroof
BATTERY CHARGER
PZ (AI) PORTHOLE
Our battery chargers have a four stage IUoU charge programme
and are extensively tested, including a 2G vibration test, to meet
our quality standards and ensure long term operation.

These chargers are compatible with Lead Acid, Li-ion, Gel and AGM
ESCAPE AND VENTILATION HATCHES batteries, and can be connected to a remote control panel (BCRP)
and a battery temperature sensor (BCTS). The chargers have a
Escape and ventilation hatches that are suitable for installation in BATTERY CHARGER separate alarm contact and the fan speed can be adjusted for
both the hull (AI) and the deck (AII). comfort reasons.

51 ESCAPE AND VENTILATION HATCHES 52
