Page 49 - MM TECHNO PLAST CATALOGUE

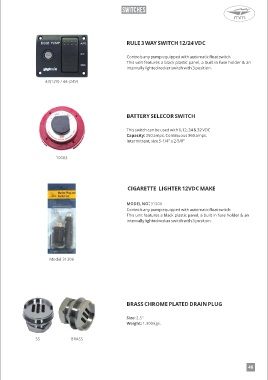

P. 49

THRU HULL fitting / water separator
 ®                                                     SWITCHES                                                ®





 PLASTIC THRU-HULL
                                                         RULE 3 WAY SWITCH 12/24 VDC

 Size: 5/8",3/4"- 1/1/4", & 1-1/2"
                                                         Controls any pump equipped with automatic float switch
                                                         This unit features a black plastic panel, a built in fuse holder & an
                                                         internally lighted rocker switch with 3 position.
 PLASTIC  THRU-HULL
                     43(12V) / 44 (24V)


 STRAIGHT THRU-HULL


 MODEL NO: TH - 1202-B
 Size: 1-1/8"                                            BATTERY SELECOR SWITCH

 MODEL NO - TH - 1202-B
                                                         This switch can be used with 6,12, 24 & 32 VDC
                                                         Capacity: 250 amps. Continuous 360 amps.
                                                         Intermittent, size 5-1/4" x 2-5/8"


 WATER SEPARATOR/FUEL FILTER, COMPLETE,   10003
 MAX. 180 L/H


 The WS180 water separator / fuel filter is suitable for both petrol and
 diesel fuels. Complies with the fire resistance test according to ISO 1008.
                                                          CIGARETTE  LIGHTER 12VDC MAKE
 Max. Capacity (litres/hour)       180
 Recommended capacity (litres/hour)   110
 Connections            m14 x 1,5 mm                     MODEL NO: 31306
 Pipe connectors (mm)         8                          Controls any pump equipped with automatic float switch
 Weight (kg)            0,7                              This unit features a black plastic panel, a built in fuse holder & an
 Contents of receiver (mm)       170                     internally lighted rocker switch with 3 position.
 W  S180  Heat deflection shield         no
 Suitable for diesel engines       yes
 Suitable for petrol engines       yes
 Replace filter            200



                       Model 31306


 WATER SEPARATOR/FUEL FILTER, COMPLETE,
 MAX. 720 L/H


 The WS720 is suitable for both petrol and diesel fuels. It needs to be
 mounted vertically and as close as possible to the tank.
                                                         BRASS CHROME PLATED DRAIN PLUG

 Max. Capacity (litres/hour)       720
 Recommended capacity (litres/hour)   440/640            Size: 2.5"
 Connections            m18 x 1,5 mm                     Weight: 1.300 kgs.
 Pipe connectors (mm)         15
 Weight (kg)            1,5
 W  S720  Contents of receiver (mm)       170  SS  BRASS
 Heat deflection shield         no
 Suitable for diesel engines       yes
 Suitable for petrol engines       yes
 Replace filter            200
                                                                                                               48
 47                                                                                                            40
   44   45   46   47   48   49   50   51   52   53   54
