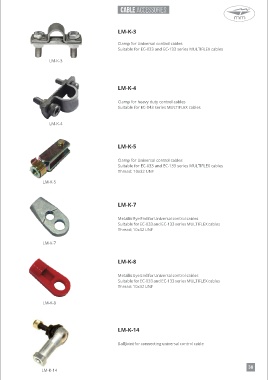

CONTROL CABLES CABLE accessories
® ®
ENGINE CONTROL CABLES LM-K-3
EC-033
MODEL TRAVEL CONDUIT INNER END THREAD
EEC-133 EC-033 90 mm 7.0 mm 1.9 mm SS-Solid Wire 10-32 UNF Clamp for Universal control cables
EEC-133 90 mm 8.6 mm 2.75 mm Coated Inner 10-32 UNF Suitable for EC-033 and EC-133 series MULTIFLEX cables
EC-133 EC-133 90 mm 8.4 mm 1.9 mm SS-Solid Wire 10-32 UNF
EC-133R 90 mm 8.4 mm 1.9 mm SS-Solid Wire 10-32 UNF LM-K-3
EC-133-R
LM-K-4
MODEL TRAVEL CONDUIT INNER
EC-020 75 mm 7.0 mm 1.9 mm SS-Solid Wire
EC-020 (STOP CABLE)
XLMRSC-LENGTH 175 mm 7.0 mm 1.9 mm SS-Wire Rope Clamp for heavy duty control cables
XLMRFC-LENGTH 175 mm 6.0 mm 1.5 mm SS-Wire Rope Suitable for EC-043 series MULTIFLEX cables
XLMRSC-LENGTH (STOP CABLE)
LM-K-4
XLMRFC-LENGTH (FIRE CABLE)
EDGE STEERING CABLES LM-K-5
ESC -11-XX
Clamp for Universal control cables
(XX is the length of the cable in feet) Suitable for EC-033 and EC-133 series MULTIFLEX cables
Ÿ Steering cable to be used with LM-H-401 Helm Thread: 10x32 UNF
Ÿ Output ends of stainless steel
Ÿ Maximum travel :9 inch(230 mm) LM-K-5
Ÿ Minimum bend radius :8 inch(200 mm)
Ÿ Maximum working load at Tiller end :5000N (500kg)
Ÿ Cable Outer Diameter :19 mm
ESC-11-XX
Ÿ Spiral Inner Cable Diameter :8 mm LM-K-7
EDGE STEERING CABLES Metallic Eye End for Universal control cables
ESC -16-XX Suitable for EC-033 and EC-133 series MULTIFLEX cables
Thread: 10x32 UNF
(XX is the length of the cable in feet)
Ÿ (XX is the length of the cable in feet) LM-K-7
Ÿ Steering cable to be used with LM-H-301 Helm
Ÿ Output ends of stainless steel
Ÿ Maximum travel :9 inch(230 mm)
Ÿ Minimum bend radius :8 inch(200 mm) LM-K-8
Ÿ Maximum working load at Tiller end :5000N (500kg)
ESC-16-XX
Ÿ Cable Outer Diameter :19 mm Metallic Eye End for Universal control cables
Ÿ Spiral Inner Cable Diameter :8 mm Suitable for EC-033 and EC-133 series MULTIFLEX cables
Thread: 10x32 UNF
EDGE STEERING CABLES
ESC -18-XX LM-K-8
(XX is the length of the cable in feet)
Ÿ (XX is the length of the cable in feet)
Ÿ Steering cable to be used with LM-H-201 A Helm
Ÿ Output ends of stainless steel LM-K-14
Ÿ Maximum travel :9 inch(230 mm)
Ÿ Minimum bend radius :8 inch(200 mm) Ball Joint for connecting universal control cable
Ÿ Maximum working load at Tiller end :1200N (120kg)
Ÿ Cable Outer Diameter :17 mm
Ÿ Spiral Inner Cable Diameter :6.2 mm
ESC-18-XX
37 38
LM-K-14
